Safety is a top concern in most homes, buildings and offices, but some locations are especially susceptible to risk and require additional levels of protection. Bullet resistant or bulletproof glass products are specifically designed to provide extra security for buildings that are vulnerable to attacks from intruders using handguns.

Glasshape designs and manufactures a range of top-quality security glass solutions that provide better protection than standard glass products.

Bullet Resistant Glass Solutions

Bullet resistant glass is typically made from a variety of materials to maximize its durability. Most types of bulletproof glass are made with polycarbonate and acrylic plastics. These are two of the most popular materials used in security glass production. The addition of glass reinforces the plastic, providing a combination of resilience and clarity, ensuring that you don’t sacrifice functionality for safety.

Bullet resistant glass differs from standard toughened (tempered) glass in both design and applicability. Toughened (tempered) glass is toughened using a heating and cooling process that makes it stronger than other standard varieties, but still far weaker than bulletproof glass. Toughened (tempered) glass is also more commonly used in low-risk projects like cabinets, glass staircases and storefronts, as opposed to the high-security applications ballistic glass is used for.

It’s important to know that you’ll need to install a purpose-built bulletproof framing system to support your security glass. Our team of experts can help make sure you have the right design in place to ensure you get the most from your ballistic glass.

Security Glass Solutions Brochure

Security Glass Solutions Brochure

Want to view & receive a copy of our Security Glass Solutions Brochure?

Security Glass Solutions Brochure

Want to view & receive a copy of our Security Glass Solutions Brochure, Click on the Button below...

Show Me!

Quick Links

AmmoShield® - Bullet Resistant Glass - Features & Benefits

  • Levels of Protection:

    Wide range of bullet-resistant protection levels available.

  • Weight:

    Lightweight compared to glass-only products of similar thickness and attack resistance.

  • 2D Bending:

    2D curves (single radius and single axis).

  • Tints and Glass Types:

    Large range of glass types available off the shelf or bespoke to your specifications.

  • Optional Spall Panel:

    Spall Panel prevents glass fragment spray on non-attack side

  • Elastic Properties:

    Elastic properties mean weapons ‘bounce’ off the glass surface.

  • Standard Sheet Dimensions:

    Standard dimensions up to 2400mm (94″) x 1800mm (71″).

  • Compatibility:

    Compatible with Digital Ceramic Ink Printing - VisionInk.

  • Resistance Times:

    Up to 60 minutes of intruder resistance.

  • Certification:

    IACS, AS 3555.1 Intruder Level 2, AS/NZS 2343 ballistic levels G0, G1, G2, R1, R2, and NIJ0108.01 Level 3

Watch the “AmmoShield® Bullet Resistant Glass” Video

Play Video about AmmoShield - Gun Firing

AmmoShield® - Bullet Resistant Glass - Applications

Ballistic glass is perfect for buildings that are either situated in areas where the risk of attacks from firearms is high, or that are likely to be targets in high-velocity ballistic attacks. This includes official buildings like embassies and courthouses, as well as banks, armoured vehicles, VIP housing and panic rooms.

Glasshape offers a range of customizable products, and our team of experts is trained to work with you to find the right solutions for your specific requirements. Contact us today to learn more about finding the right glass for your project.

Suitable Threat Level: Equipped with Heavy Tools and Firearms

Typical Weapons Used

    • Sledgehammers
    • Axes
    • Crowbars
    • Baseball Bats
    • Chisels
    • Bolt Cutters
    • Firearms
Security Threat - Hammer
Security Threat - Hand Gun
Security Threat - Rifle
Attack Time - AmmoShield - 60 Minutes
  • Cash Handling - Banks, Foreign Exchange

    Protect staff and assets from the threat of armed robbery.

  • Panic Rooms - Personal Protection, Refuge Rooms

    Secure rooms in luxury homes or buildings in high risk areas to protect the occupants from armed attack.

  • Foreign Embassies

    Protect staff and information in the event of a terrorist attack.

  • Courtrooms - Judges Chambers, Witness Boxes

    Provide protection in the event of attack with firearms.

  • VIP and Diplomatic Housing

    Protect VIPs from armed robbery or terrorist attack.

  • Armoured Vehicles (certified for road use)

    Protection of operators in cash handling, police or military operations.

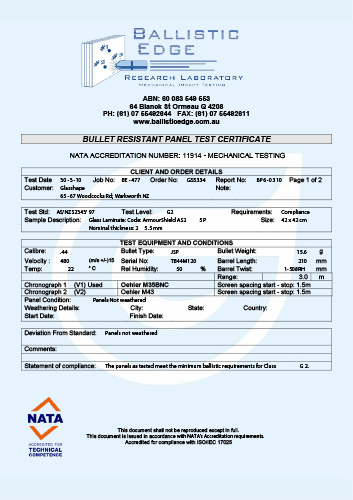

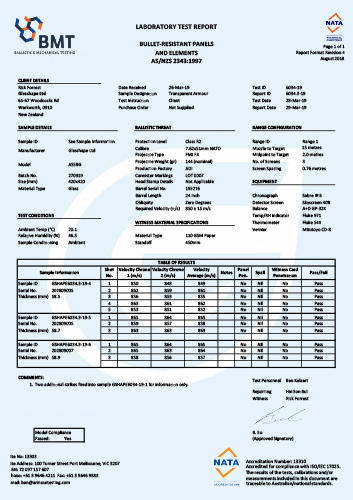

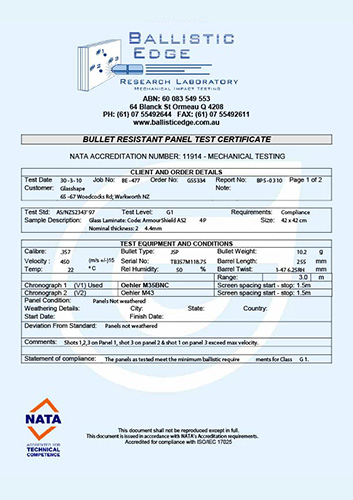

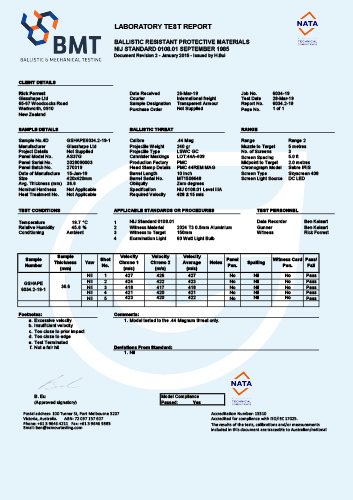

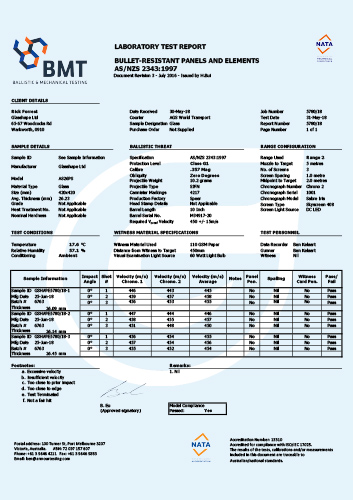

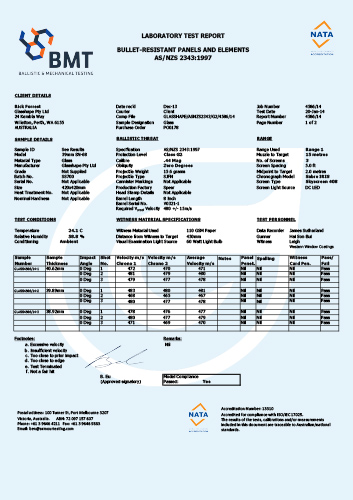

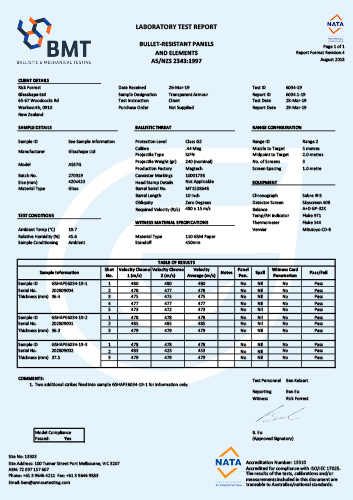

AmmoShield® - Bullet Resistant Glass - Testing & Certification

Glasshape® has carried out extensive testing of our AmmoShield® glass to both the AS/NZS2343:1997 and NIJ0108.01:1985 standards.

Testing to AS/NZS2343:1997 requires the test panel to be shot three times with the shot centers 100mm apart forming an equilateral triangle. A witness card is mounted 450mm from the rear of the glass and the glass panel is deemed to satisfy the ballistic classification if no projectile passes through and no particles from the panel or projectile perforate the witness card.

AS 3555.1-2003

AS/NZS 2343 1997

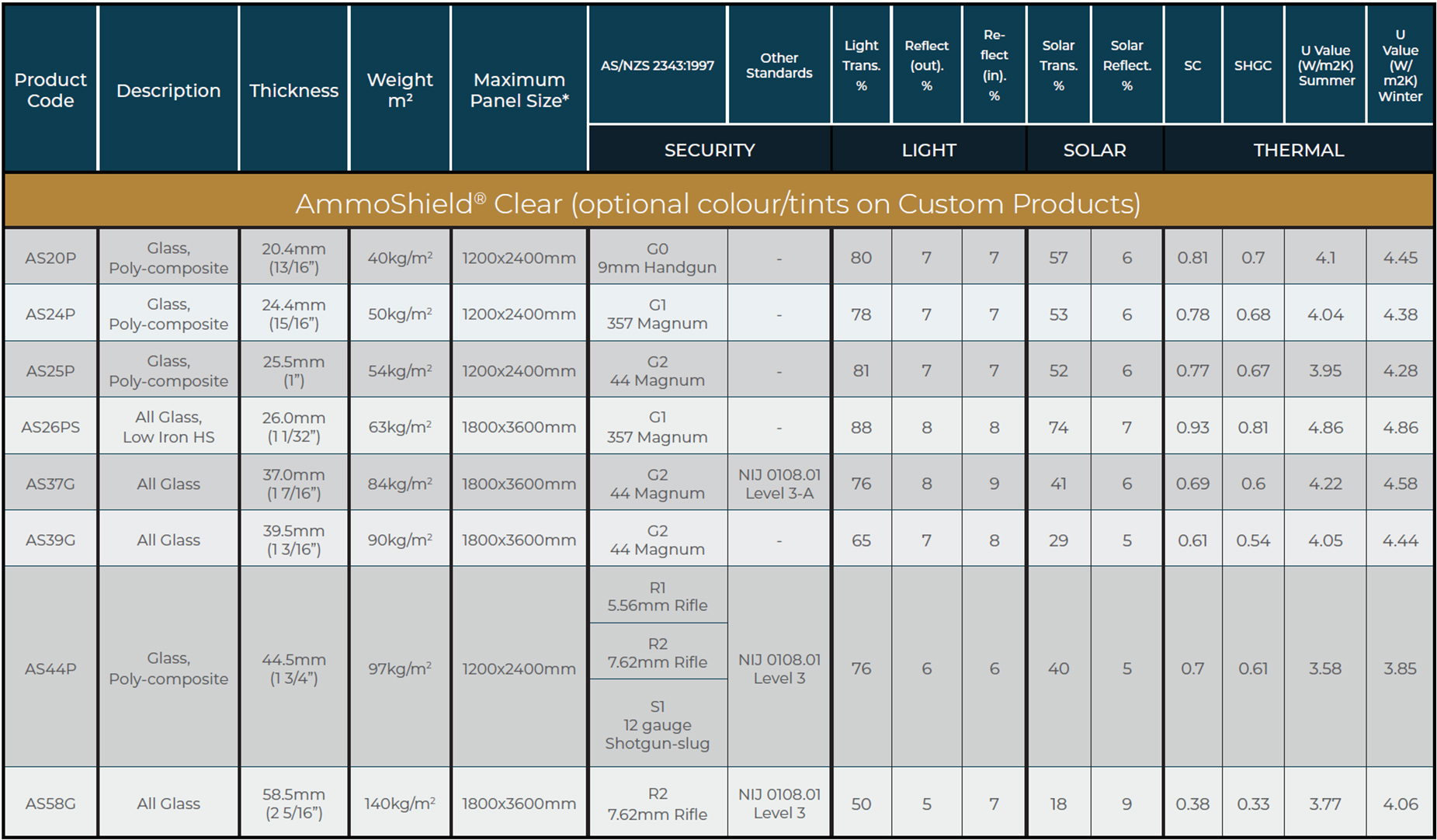

AmmoShield® - Bullet Resistant Glass - Technical Performance Data

The table below provides a guide to which thickness may best suit your requirements, or you can contact our product specialists who will help you select the correct product for your application.
